Turn your own device into a payment terminal

Introduction

CCV PhonePOS enables acceptance of payments with CTLS cards of the Girocard, Visa, Mastercard, V-Pay, Maestro, Diners and Amex brands. The solution has been tested with the following devices.

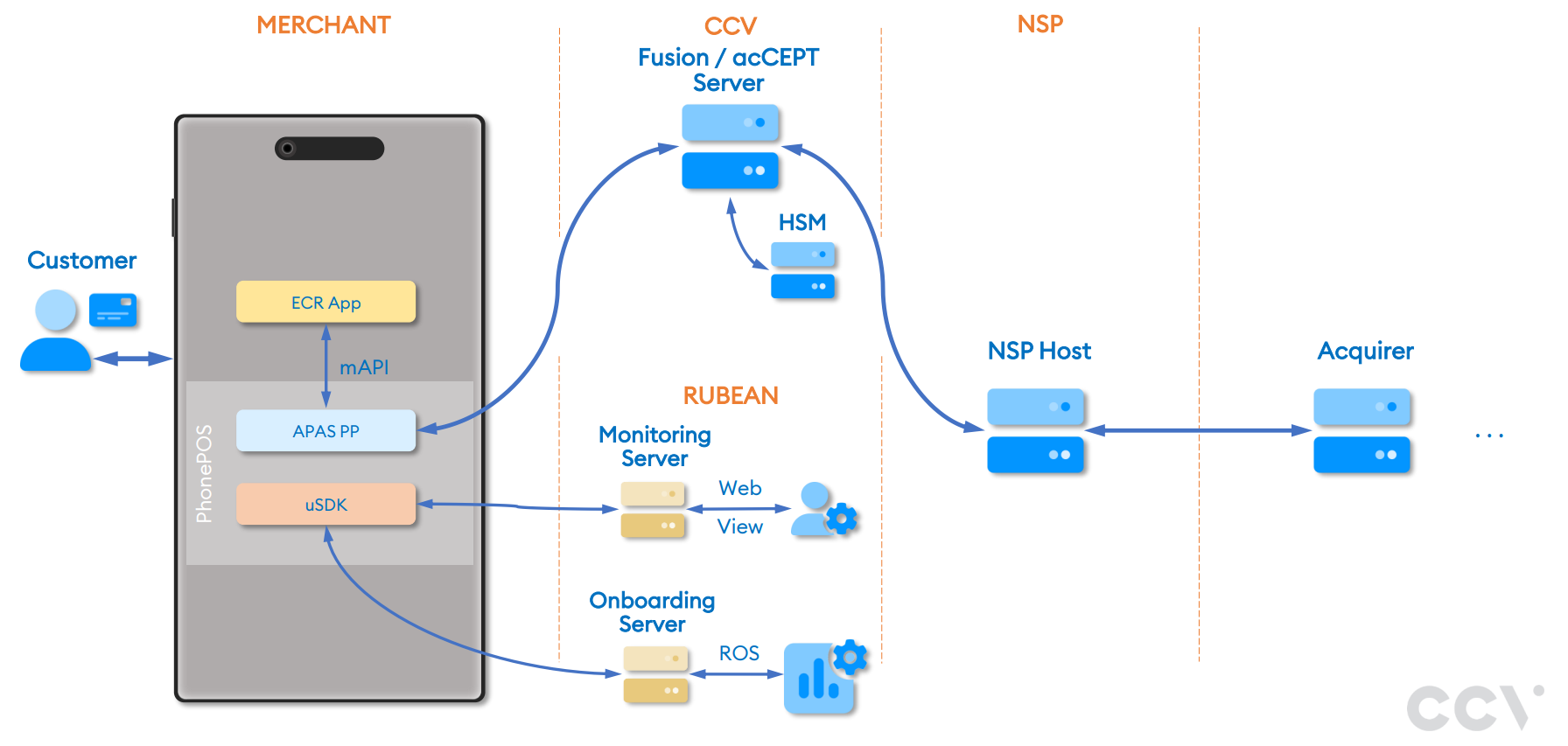

General architecture of the solution

The CCV PhonePOS solution consists of various components, some of which are provided by the CCV’s partner, Rubean.

Development tools

For the convenient integration of the PhonePOS solution with the Android ECR applications CCV provides the mAPI (Android SDK).

Development implementation

Payment Recovery

It is being advised that a cash register always uses the PaymentRecovery procedure when it does receive a response from the PhonePOS application (eg. because of the problem with Internet connection). It is the way to keep the same trx status in both the ECR and the payment apps. The documentation of a payment recovery can be found here.

Printer Device Requests

Printer Device Requests must be deactivated for PhonePOS, as these can lead to communication problems between acCEPT/PhonePOS App/ECR App. The configuration options: “Off” or “ReceiptsInResponse” must therefore be selected. The “Default” option must not be selected. The documentation can be found here.

Additional development services are provided by Rubean

Operational tools

Support teams
